Blind Castellation Interconnection



In this approach a semicircular or crown-shaped metallised surface (Castellation) is used for making vertical interconnections between the stacked MCMs as shown in Figure gif. This method was used by Harris and CTS Microelectronics in the design of high density memory modules.

   figure634

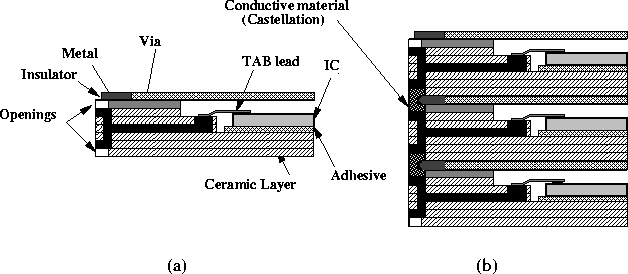

Figure: (a) A schematic diagram of an MCM with the blind castellation method. (b) A schematic diagram of three MCMs stacked using the blind castellation method.
